Inviting L-Shaped House Plan with 3 Bedrooms & Garage
This 1,690-square-foot house organizes 3 bedrooms and 1 bathroom across an easy-to-navigate single level. The kitchen, dining area, and living room create the main gathering zone, while the bedroom shows how the private rooms can be furnished.
Measurements
1,690 ft²157 m²Total area
3Bedrooms
1Bathroom
1Level
1Garage spaces
One-time payment$9.99Lifetime access included
Unlock 200+ Homeplans200+ Editable HomeplansProfessionally designed starting points
Lifetime AccessPay once and keep the full collection
Edit in 2D and 3DMove walls, update furniture, and change finishes
Fit Your SpaceSet your own dimensions and room sizes
EXPLORE THIS PROJECT
Explore the Main Spaces
See how the kitchen, dining area, living room, and bedroom are furnished and connected throughout the plan. Each view adds practical context for furniture placement, circulation, and the finish direction you can change in Planner 5D.
Plan Walkthrough

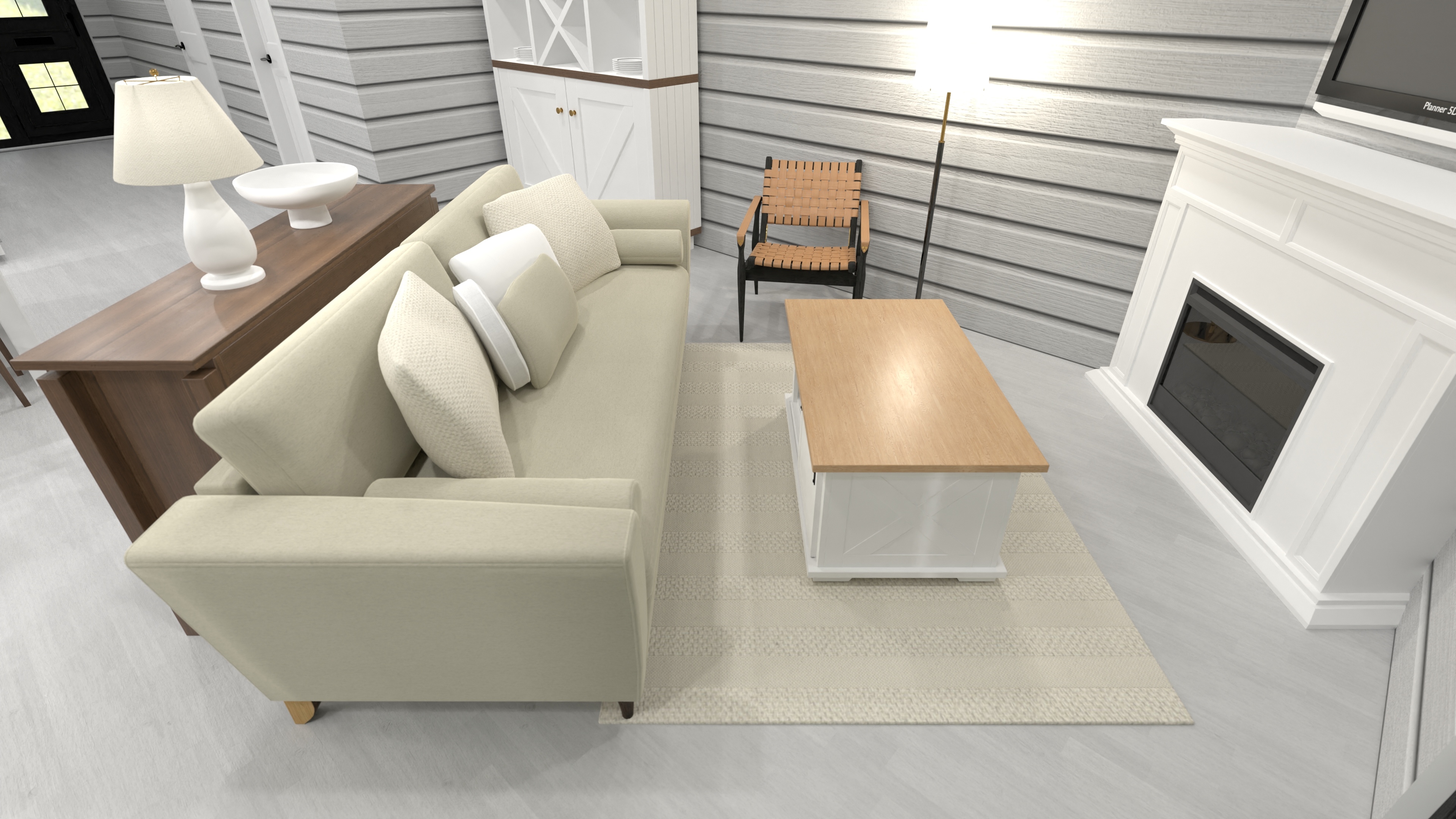

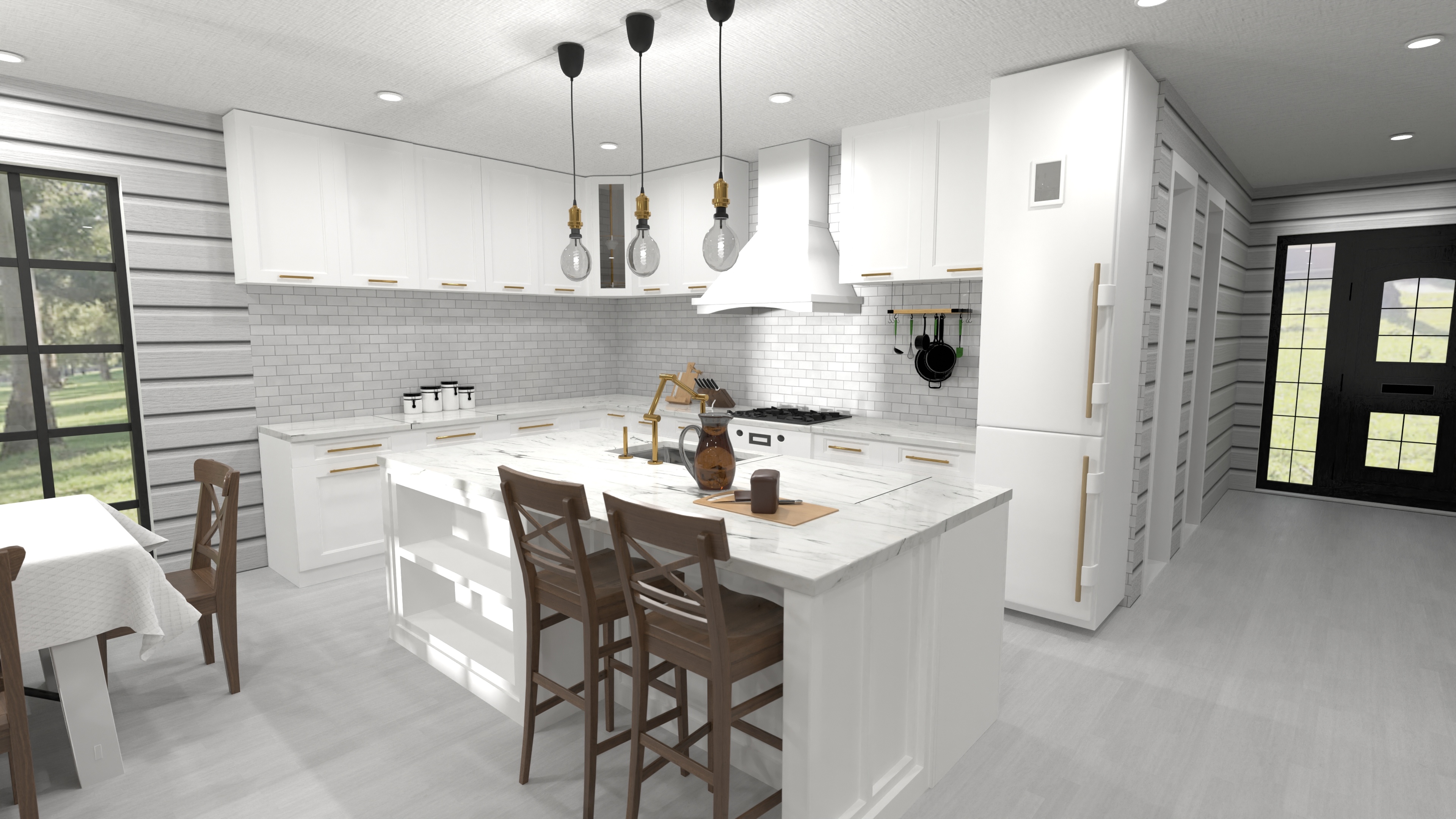

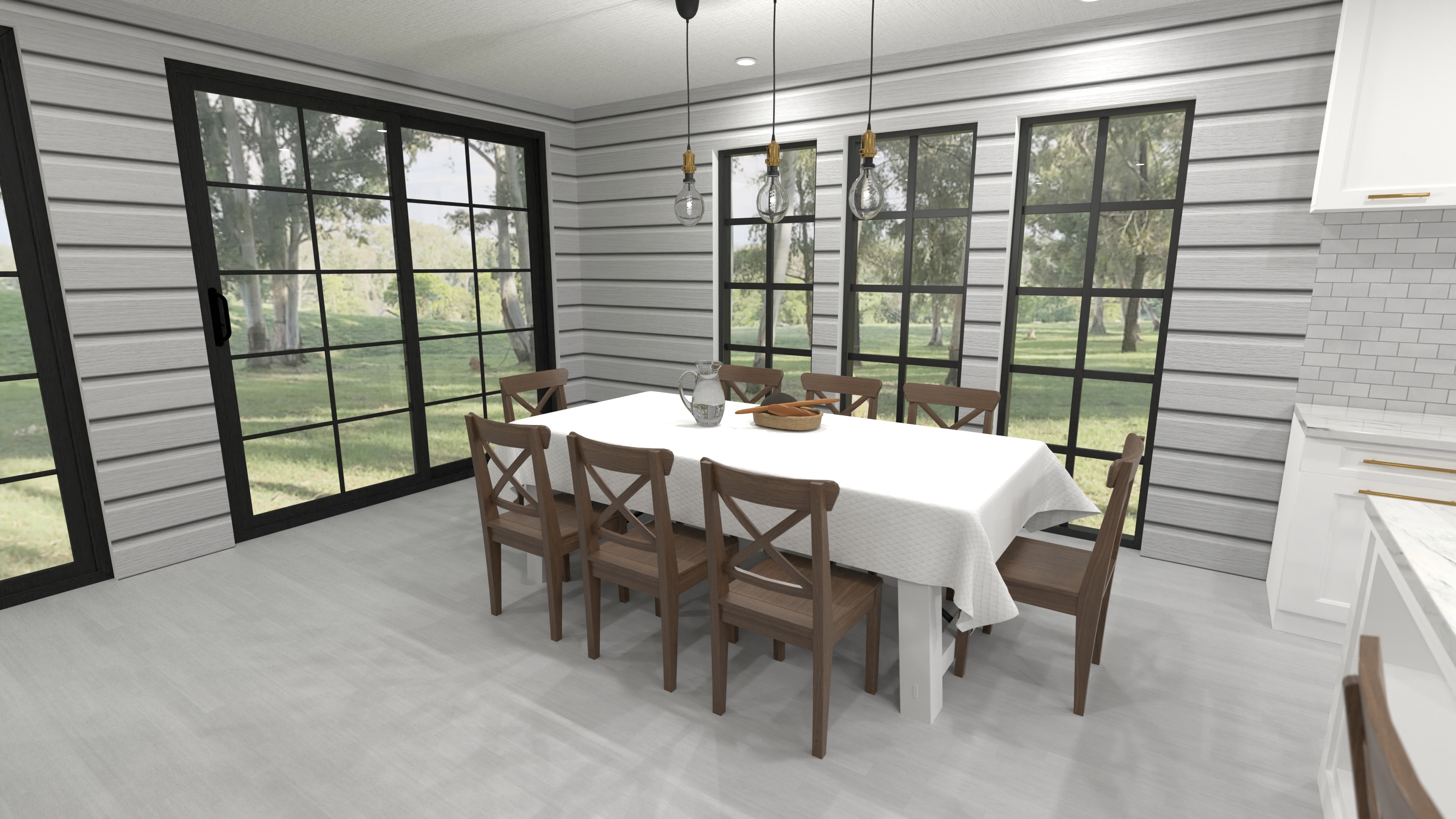

Open Living, Kitchen, and Dining
This 1,690-sq-ft L shaped house plan delivers effortless one-story living wrapped around an attached garage. Step through the front entry and the open-concept great room, dining area, and island kitchen create a bright hub perfect for family gatherings or casual entertaining.

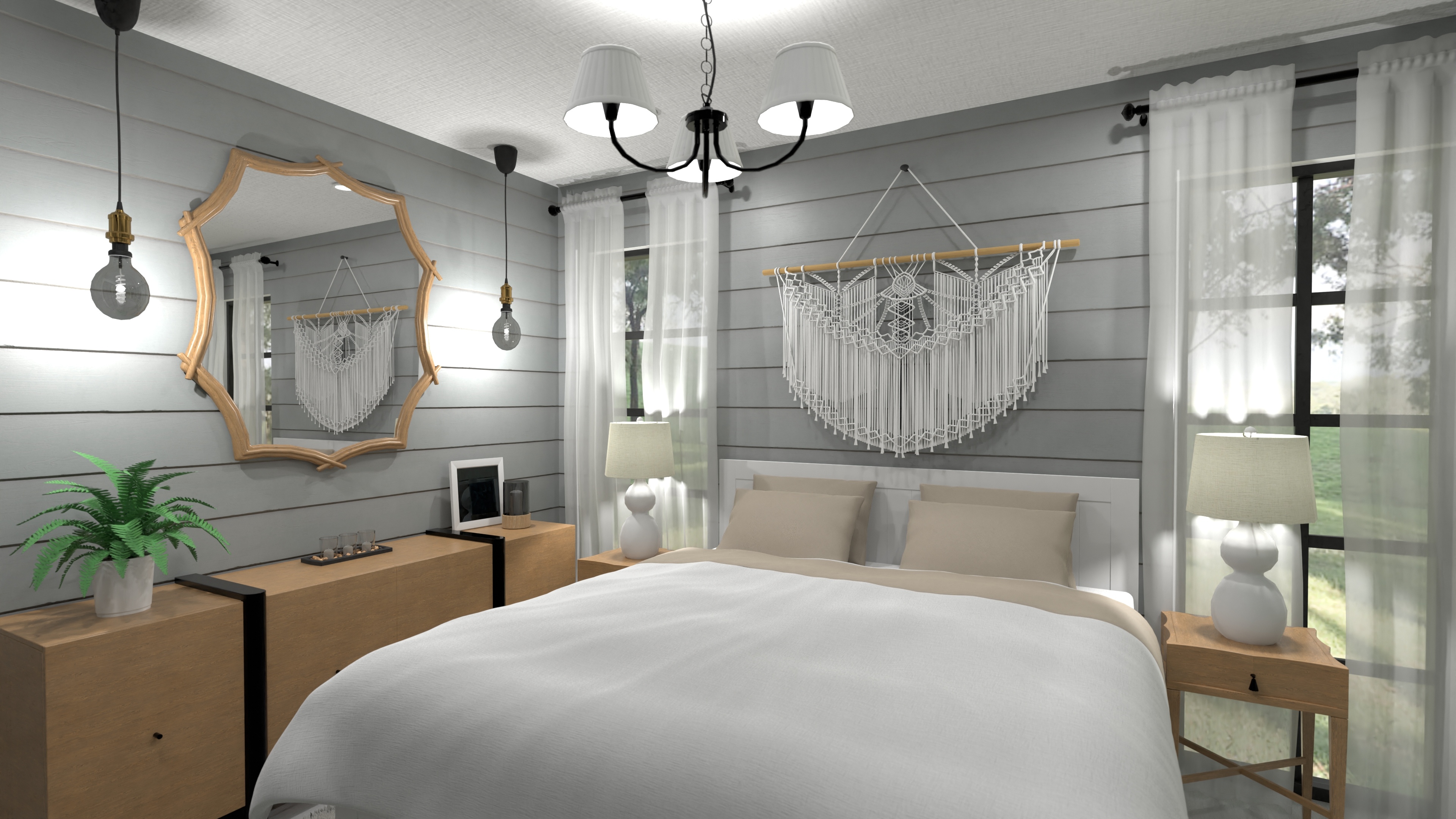

Bedroom Layout and Privacy
A private primary suite tucks into one wing, while two additional bedrooms share a full bath on the opposite side—ideal for kids, guests, or a home office. A separate laundry room sits just off the garage so muddy shoes never march through the house. Clean lines and an L-shaped footprint make the design great for corner lots or courtyard patios.
Storage and Everyday Practicality
Practical details support everyday routines. The plan includes split-bedroom privacy layout. It also provides handy mudroom/laundry between kitchen and garage. Another useful detail is l-shaped footprint ideal for backyard patio or pool. The plan also provides space for 1 vehicle.
Full Specifications
Total heated area1,690 ft²157 m²
Dimensions40' wide × 58' 4" deep12.2 m wide × 17.8 m deep
Bedrooms3
Bathrooms1
Levels1
Garage spaces1
Building height13' 1"4 m
Great Room / Kitchen635 ft²59 m²
Primary Bedroom172 ft²16 m²
Secondary Bedrooms140 & 129 ft²140 & 12 m²
Garage area452 ft²42 m²
Ceiling heightFlat 9' ceilings throughoutFlat 2.7 m ceilings throughout
RoofLow-pitch gable roof with composite shingles
GarageFront-entry garage for 1 car
Is This Plan Right for You?
Best for
- Households that want 3 bedrooms within a 1,690 ft² house
- Anyone who prefers kitchen, dining area, and living room arranged as a connected social zone
- People who want everyday living without stairs
- Households that need parking or storage for 1 vehicle
- Split-bedroom privacy layout
Things to consider
- Room sizes and circulation should be checked against your household's furniture and accessibility needs
- Local setbacks, structure, utilities, and building-code requirements must be confirmed before construction
