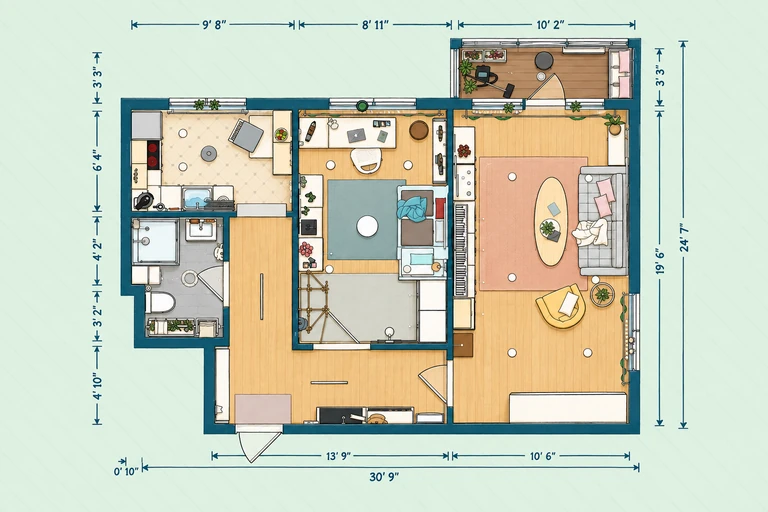

2D floor plan

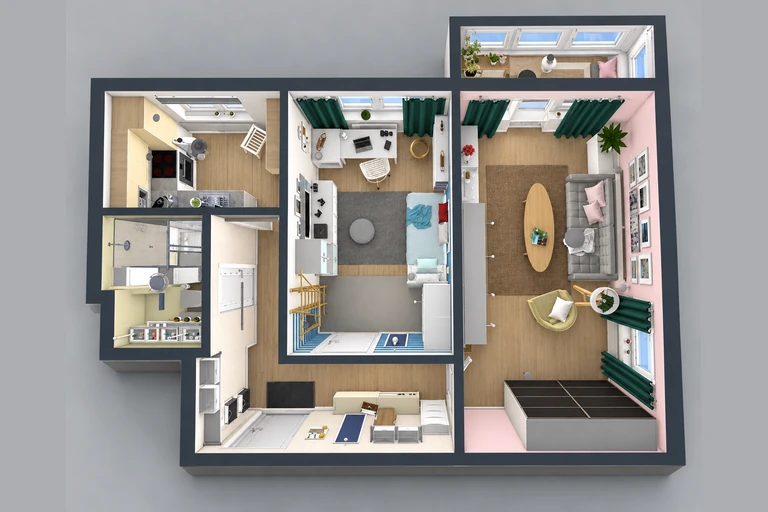

3D overview
Interior
Functional One Bedroom Apartment Layout with Balcony
This 560-square-foot one-bedroom apartment connects an open living and dining room to a sunlit balcony. A separate kitchen, quiet bedroom, full bathroom, and built-in entry storage create an easy everyday layout for compact urban living.
Measurements
560 ft²52 m²Total area
1Bedroom
1Bathroom
1Level
1Balcony
One-time payment$9.99Lifetime access included
Unlock 200+ Homeplans200+ Editable HomeplansProfessionally designed starting points
Lifetime AccessPay once and keep the full collection
Edit in 2D and 3DMove walls, update furniture, and change finishes
Fit Your SpaceSet your own dimensions and room sizes
EXPLORE THIS PROJECT
Step Inside a Practical City Apartment
Explore a bright social area, efficient kitchen, private bedroom, modern bathroom, and an outdoor extension that makes the apartment feel larger.
Plan Walkthrough

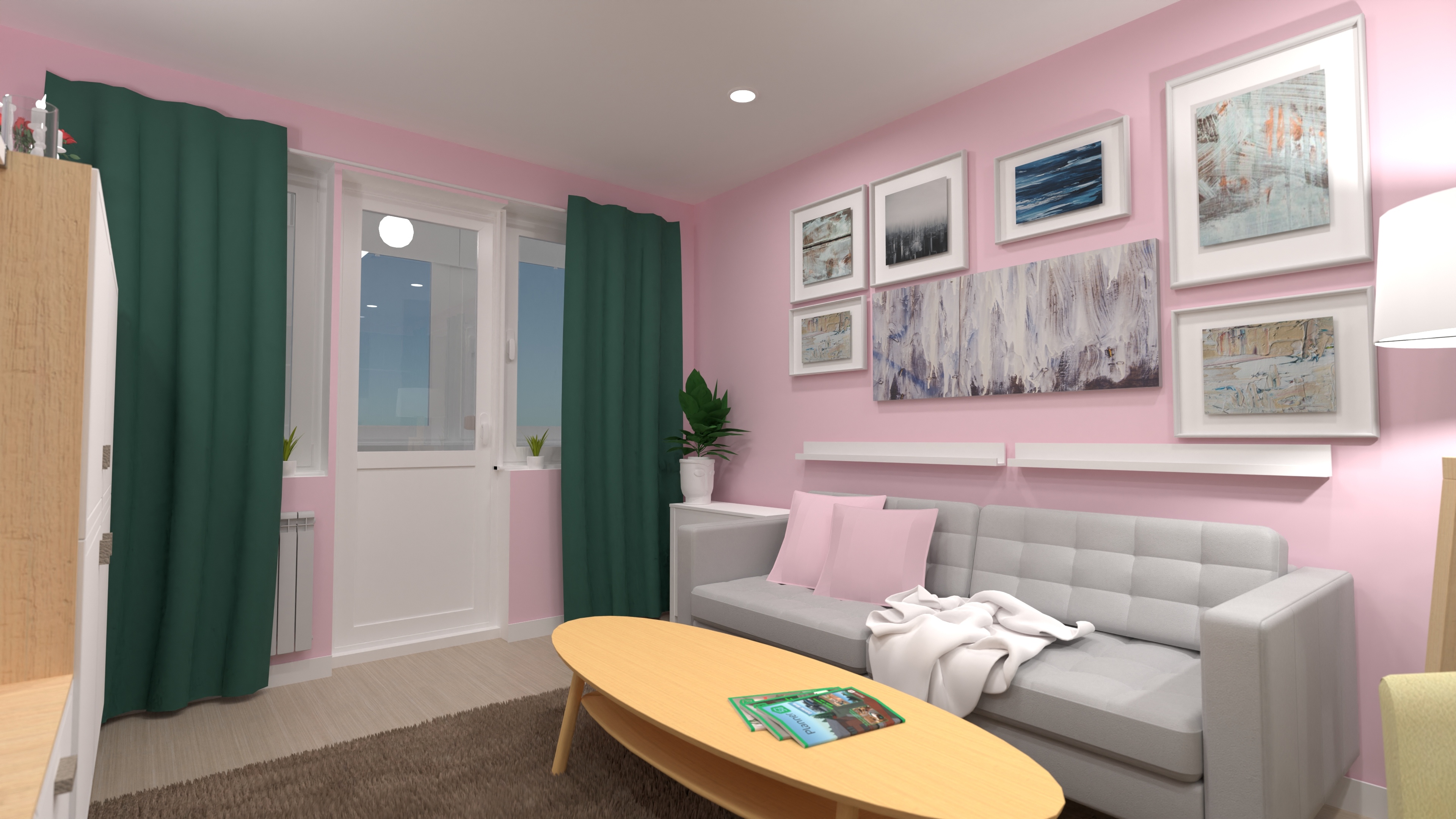

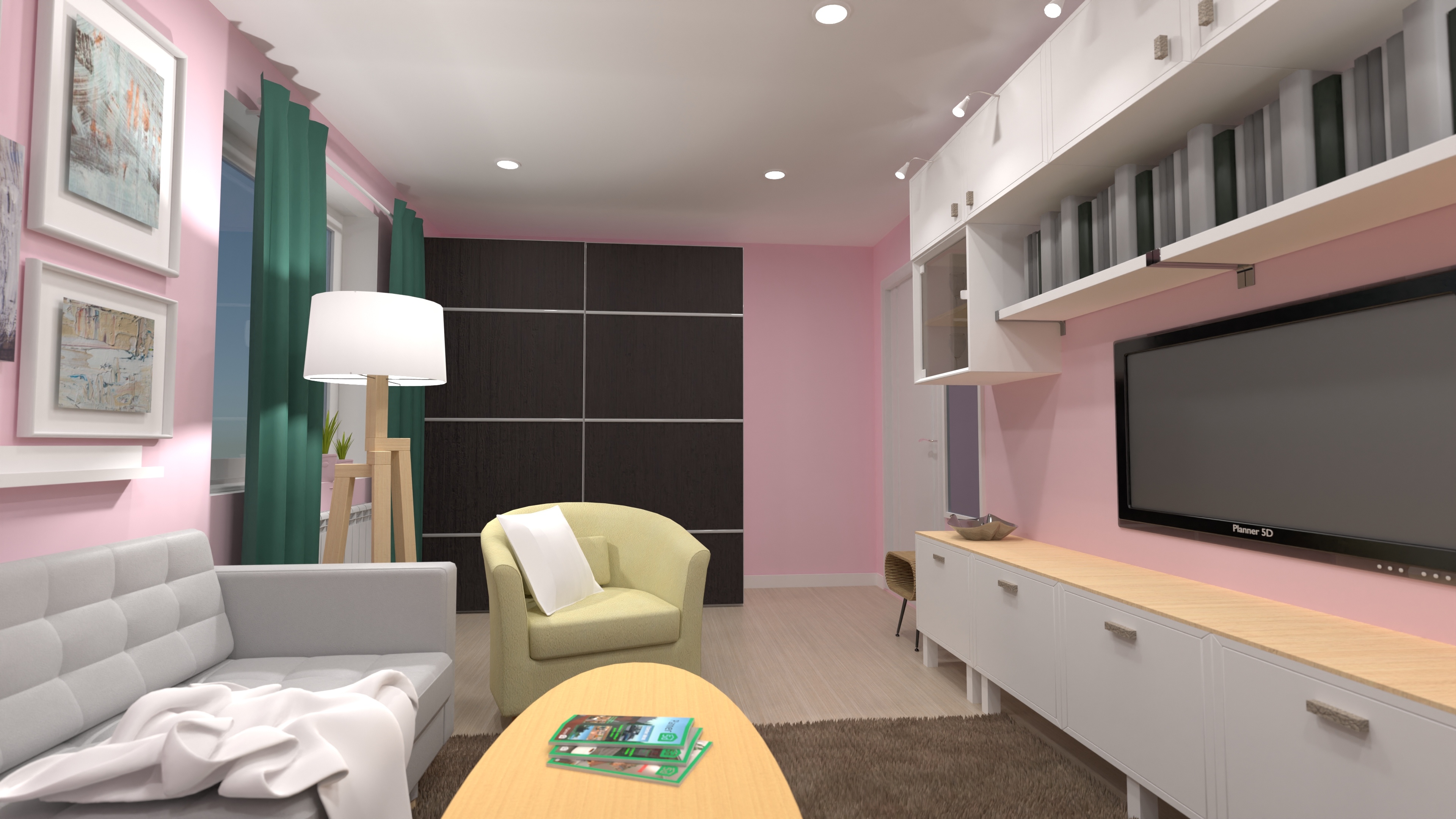

Living, Dining, and Balcony
The approximately 270-square-foot social zone supports lounging and dining, then extends outdoors through the balcony door.

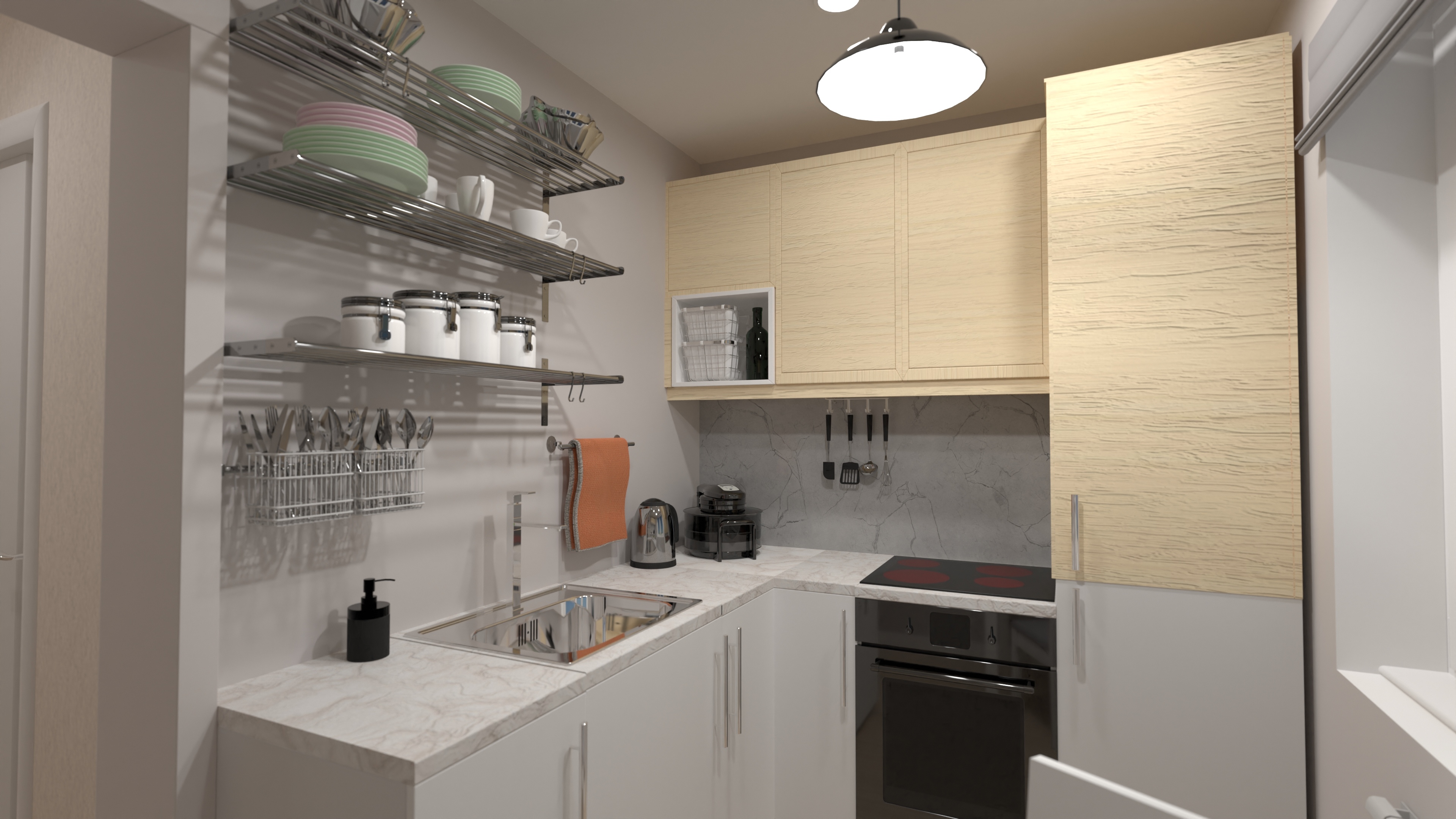

Kitchen
The approximately 65-square-foot kitchen provides a focused cooking zone close to the dining area without dominating the living room.

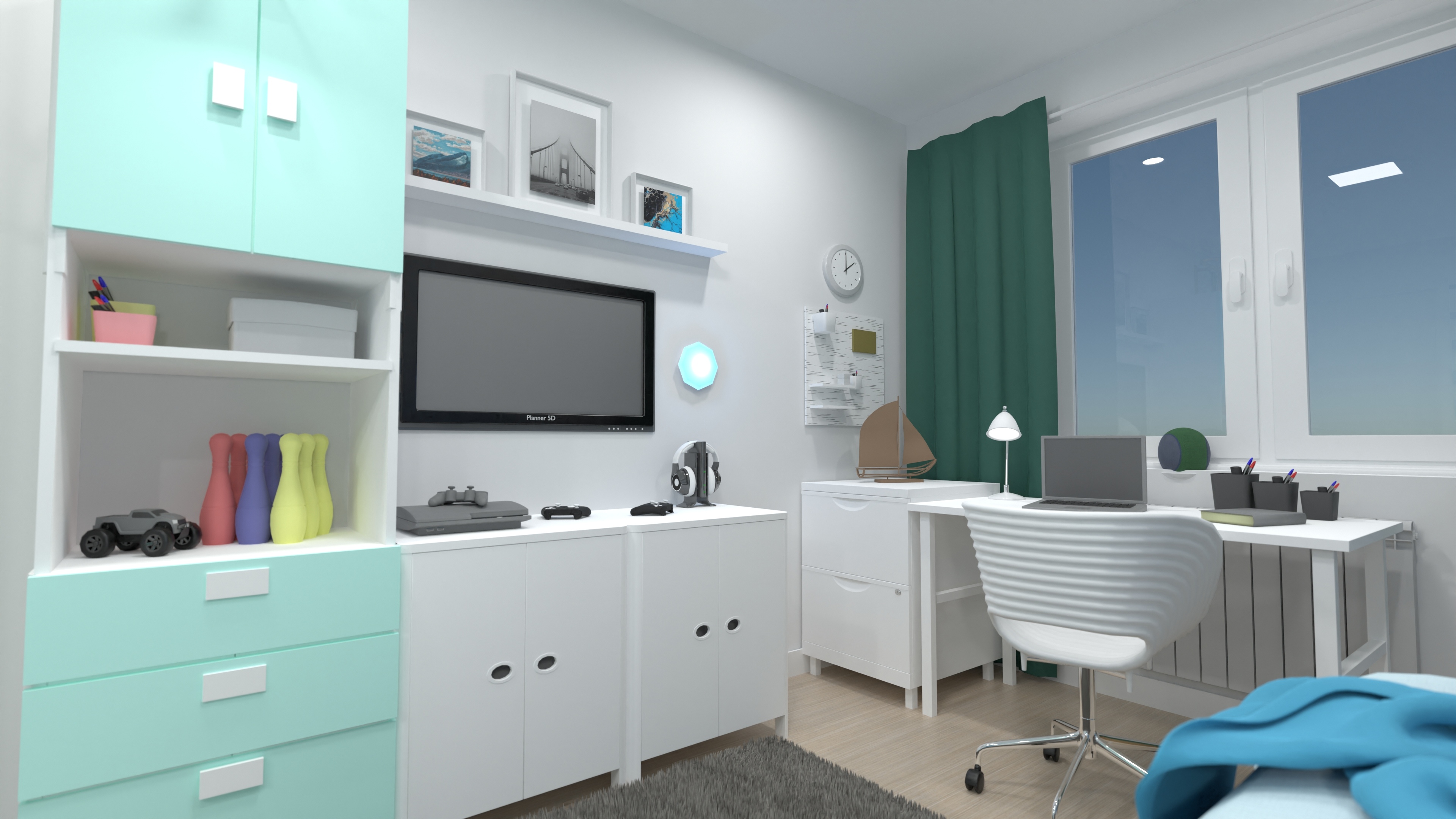

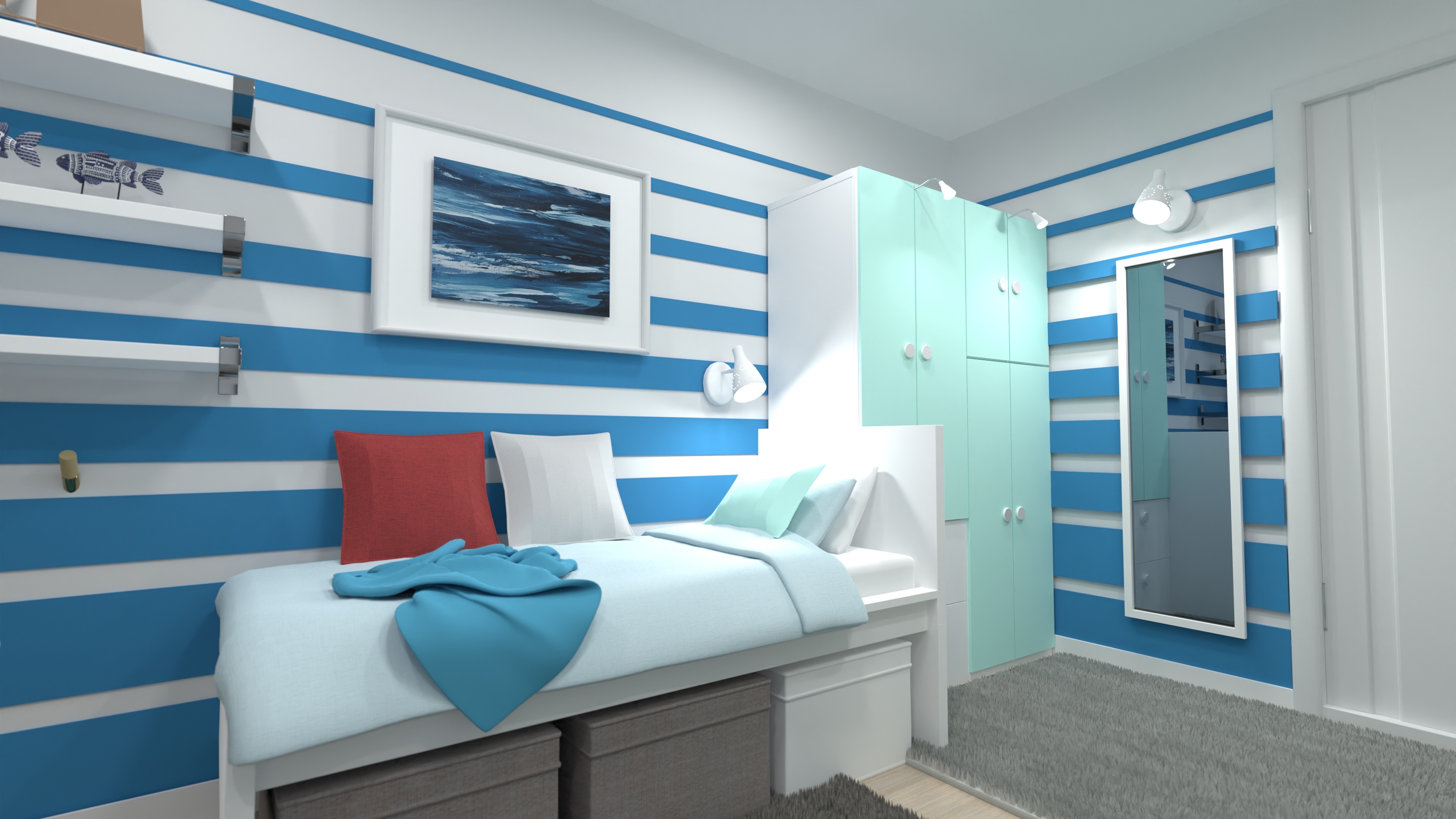

Bedroom and Storage
The approximately 130-square-foot bedroom includes built-in storage. Additional entry storage helps keep coats and household items out of sight.
Bathroom
The approximately 43-square-foot bathroom uses contemporary fixtures and tile in a compact arrangement.
Full Specifications
Total areaapproximately 560 ft²52 m²
Dimensions29' 7" wide × 23' 5" deep9.02 m wide × 7.14 m deep
Height8' 2"2.49 m
Bedrooms1
Bathrooms1
Levels1
Living and diningapproximately 270 ft²approximately 25 m²
Bedroomapproximately 130 ft²approximately 12 m²
Kitchenapproximately 65 ft²approximately 6 m²
Bathroomapproximately 43 ft²approximately 4 m²
Outdoor space1 balcony
GarageNone
Is This Plan Right for You?
Best for
- Singles or couples who want a separate bedroom
- City dwellers who value private outdoor space
- People who prefer a dedicated kitchen zone
- Anyone who needs built-in entry and bedroom storage
- Compact apartment renovations or furnishing projects
Things to consider
- The bathroom and kitchen are compact
- The balcony reduces the amount of enclosed floor area
- There is no dedicated home office or laundry area shown
- Furniture should preserve the route to the balcony
- Confirm actual dimensions and building requirements before implementation
