Floor Plan Symbols and Abbreviations – Complete Guide

Reading a floor plan can sometimes feel like you're reading a different language. Those tiny symbols and random letters scattered across the page can seem confusing at first. But once you know what they mean, reading floor plans becomes much easier.

Whether you're buying a home, renovating, studying architecture, or just curious about how buildings are designed, this guide will help you understand floor plan symbols and abbreviations. Let’s make sense of the blueprints.

Why understanding floor plan symbols matters

Knowing what floor plan symbols mean will help you manage your projects in several ways. Floor plan symbols are universal tools for sharing complex ideas without lengthy explanations. This can come in handy to spot problems before you sign any papers when buying a new home.

Real estate agents and builders use floor plan symbols to explain homes to buyers. However, even DIY enthusiasts can benefit from being able to read their renovation plans. Planning a kitchen remodel? You'll know exactly where the sink and stove will go. Working with a contractor? You can talk about the project like a pro.

Types of floor plan symbols

Let's break down the main groups of symbols you'll see on floor plans.

Architectural symbols

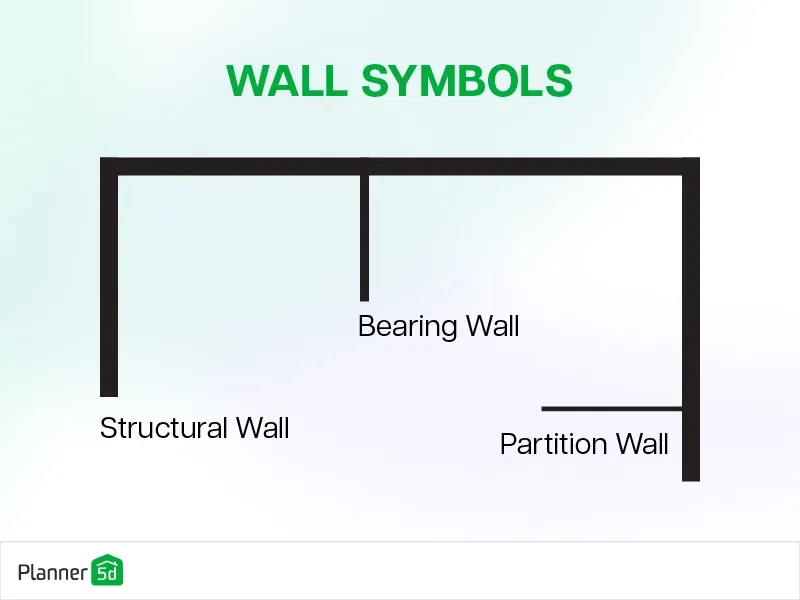

• Walls: Solid lines mean full walls. Dashed lines might be half-walls or changes in height. Thicker lines usually show load-bearing walls.

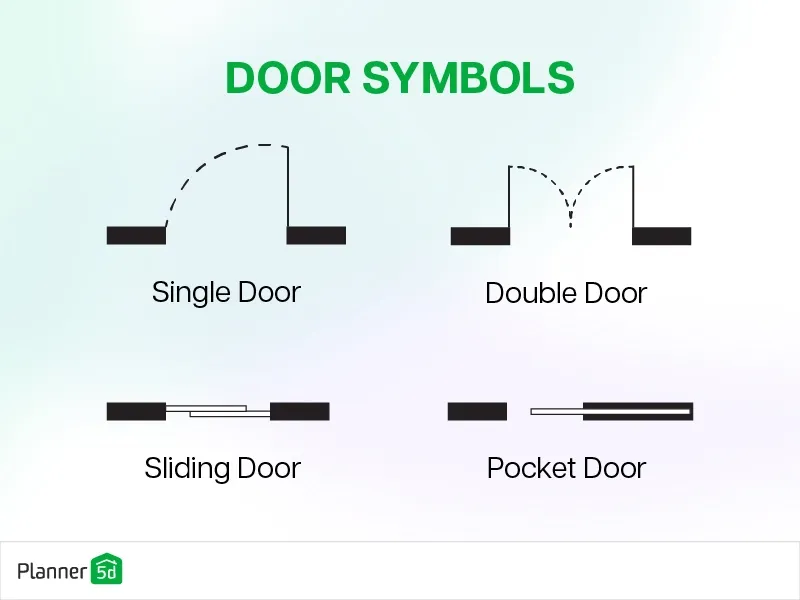

• Doors: A single arc means a standard door. Double arcs show double doors. Sliding and pocket doors have their own distinct marks.

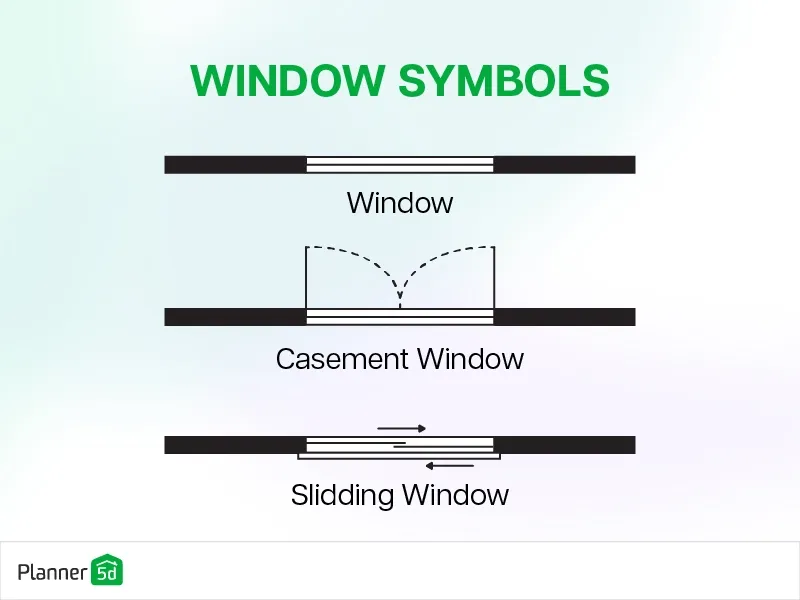

• Windows: Look for thin lines with breaks. Casement windows swing open; sliding ones have parallel lines.

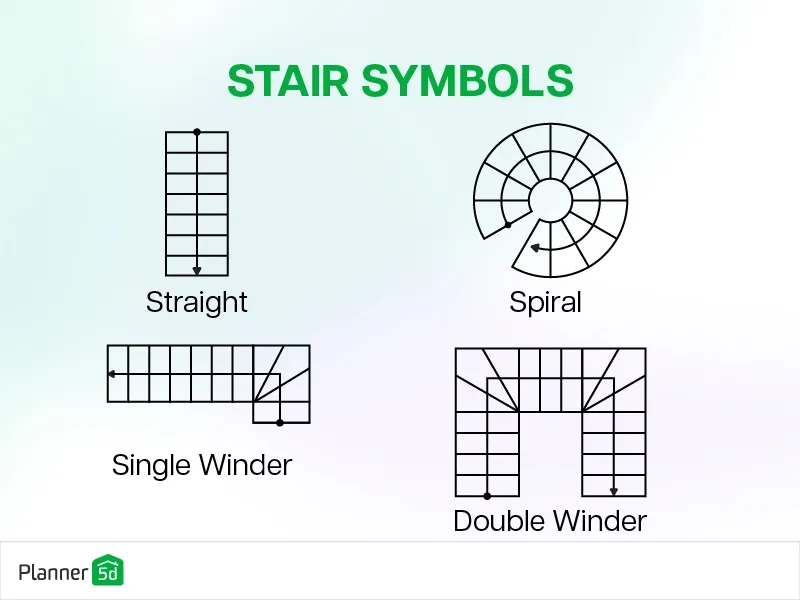

• Stairs: Arrows point up or down. Treads and landings are shown with rectangles and lines.

• Floor levels and section cuts: Lines with arrows and letters mark sections of the plan that link to other views.

Fixture symbols

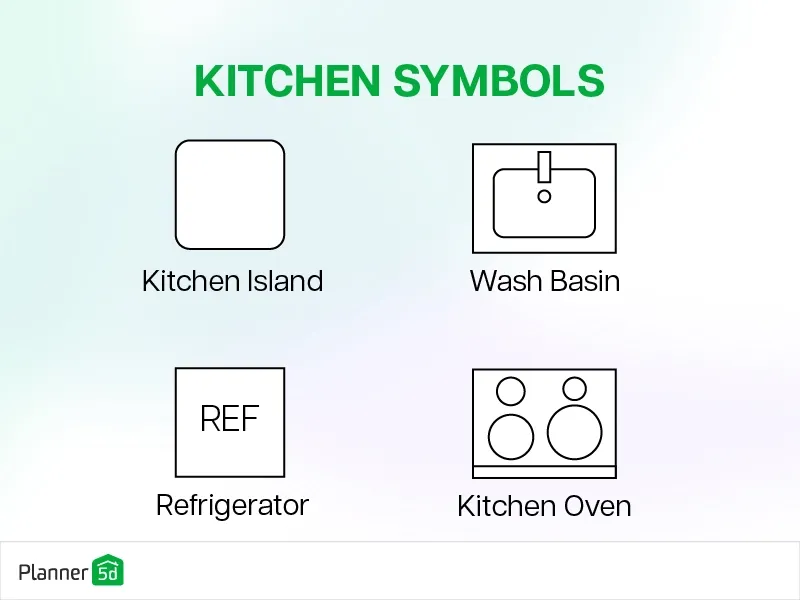

• Kitchen: Rectangles and small icons show the sink, fridge (REF), oven, and island.

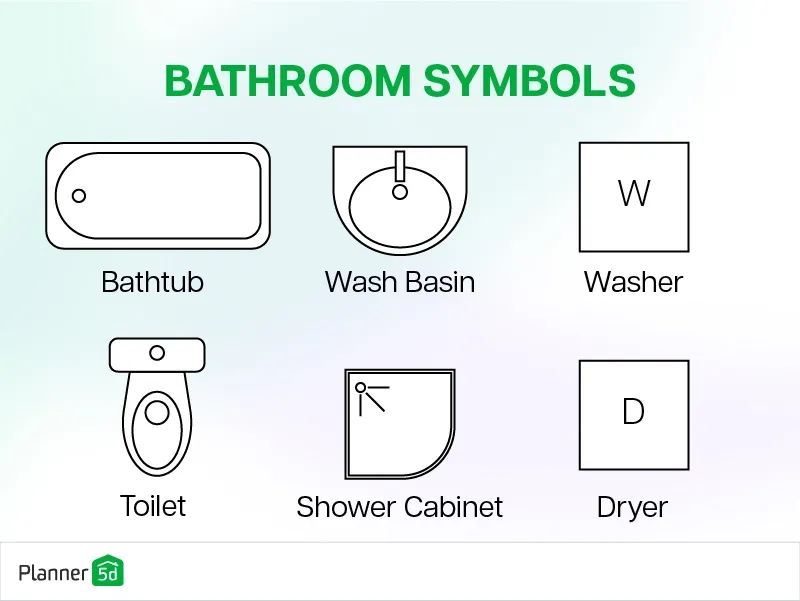

• Bathroom: Look for the toilet (TLT), shower (SHWR), bathtub, and sink (LAV).

• Laundry: The washer and dryer are marked as W and D, or shown as square icons side by side.

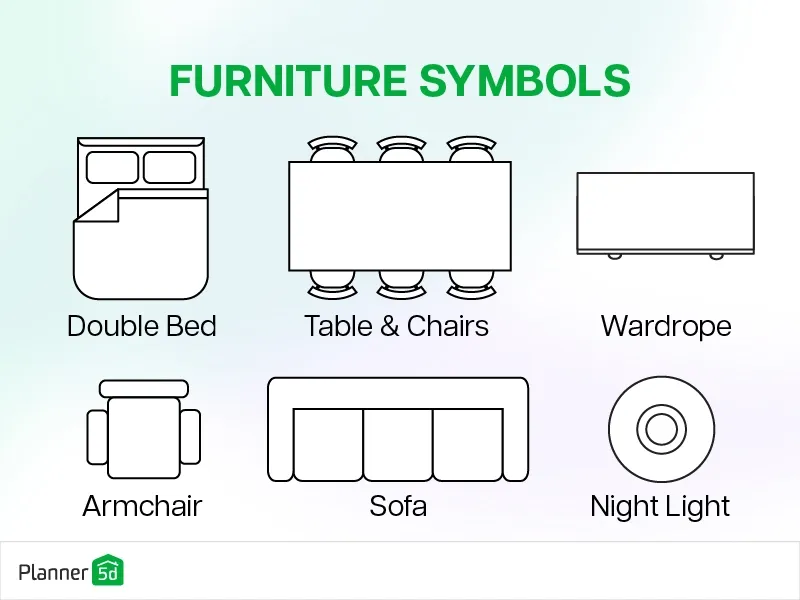

Furniture layout symbols

• Beds, couches, and chairs are usually shown from above.
• Tables and desks are typically rectangular or circular.
• Built-in shelving and cabinetry are labelled or drawn in.
• Lighting and ceiling fans are marked with small fixtures or blade icons.

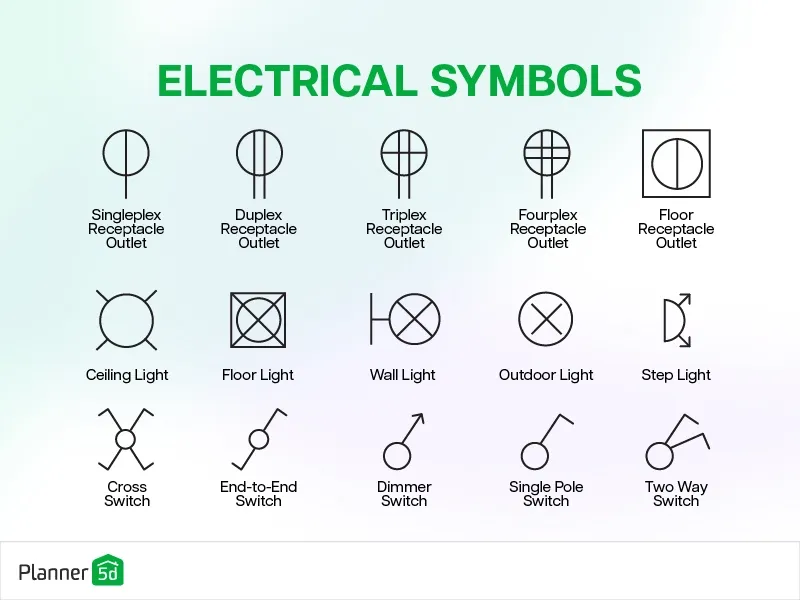

Electrical symbols

• Outlets: Small circles or squares. GFCI outlets near water are labelled.
• Switches: S for a simple switch, 3W for a 3-way switch.
• Lights: A ceiling light might be a circle; recessed lights are smaller.
• Data ports and jacks: Usually marked with letters like TEL or CAT5.

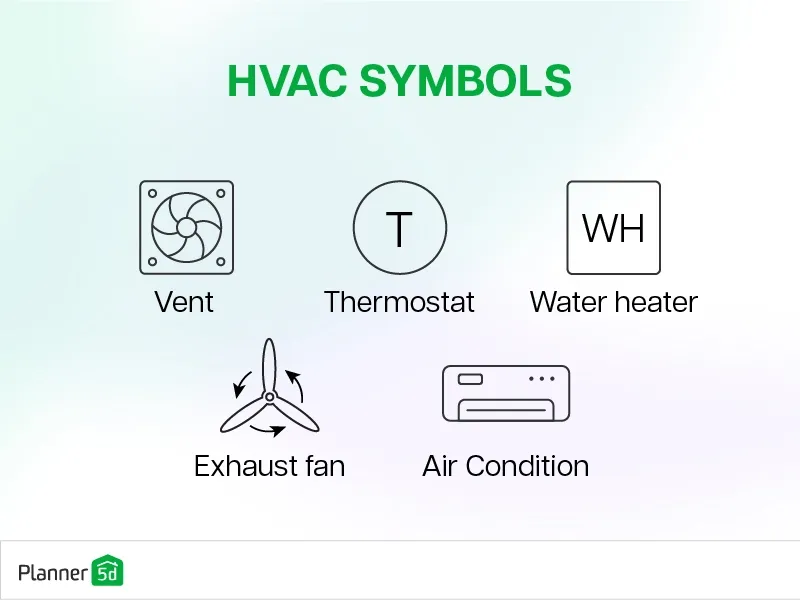

HVAC and mechanical symbols

• Vents and ducts are rectangles or arrows.
• Thermostats are shown as T or a box on a wall.
• Water heaters (WH) are usually labelled directly.
• Exhaust fans appear as small fans or boxes with arrows.

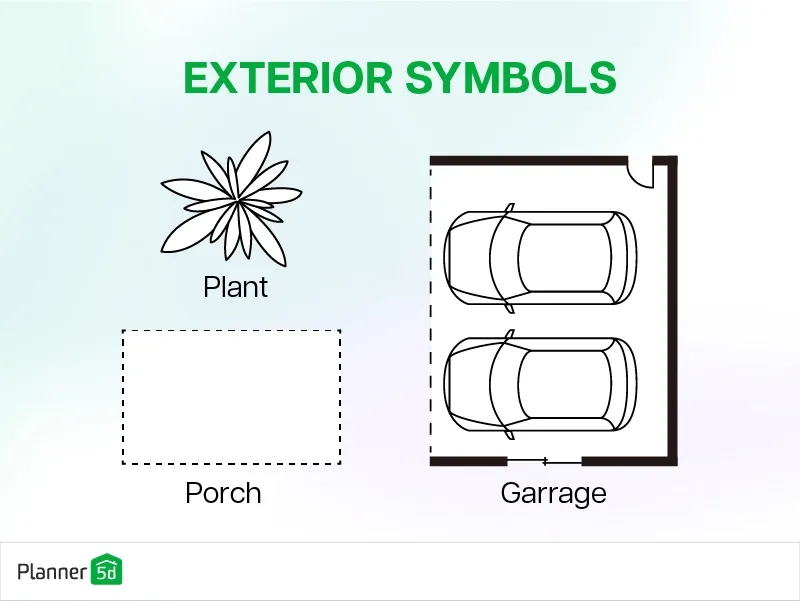

Exterior/structural symbols

• Porches, patios, and decks are outlined with dashed or dotted lines.
• Landscaping is drawn with soft shapes and textures.
• Garages and driveways are clearly labelled.
• Rooflines use sloped lines or arrows to show direction.

Floor plan abbreviations – complete list

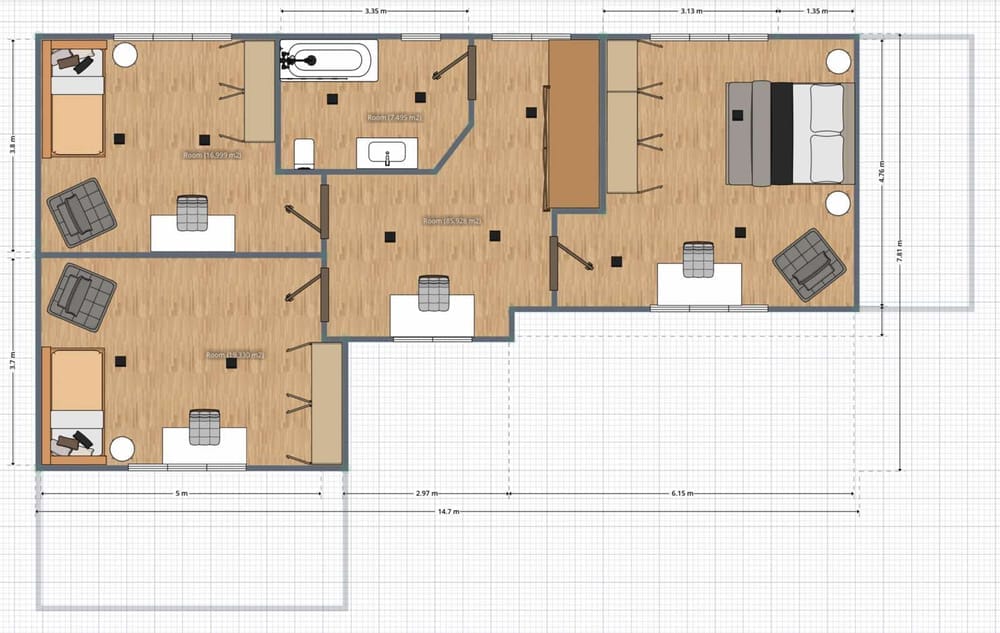

How to read a floor plan like a pro

• Start by finding the north arrow on the floor plan. This indicates the direction the house faces. Next, look for the main entrance. This helps you get oriented.
• Check the scale at the bottom of the plan. It tells you how the drawing relates to real life. A scale of 1/4" = 1' means every quarter inch on paper equals one foot in real life.
• Look for dimension lines with numbers. These show exact measurements between walls, doors, and other features. Room sizes often appear in the middle of each space.
• Follow section lines. Section lines (lines with letters or numbers at each end) show where other drawings provide more detail. These might point to kitchen layouts or bathroom details.
• Pay attention to the legend or symbol key. Different architects may use slightly different symbols, so it is essential to check their specific meanings.

Helpful tips for reading floor plans

Take your time when first looking at a plan. Start with the big picture, then focus on details. Compare different floors if you have a multi-story home.

Use your finger to trace paths through the house. This helps you understand traffic flow and daily movement patterns.

Think about furniture placement as you look at room sizes. A 10x10 bedroom feels different from a 12x14 bedroom when you're placing a bed and dresser. Don't forget about ceiling height. Some plans display this information, and it makes a significant difference in how rooms feel.

How to visualize 3D space from a 2D Plan

Looking at a flat drawing and imagining a real room takes practice. Here are some tricks to help you see the space in your mind.

• Start with room size. If a bedroom is 12x14 feet, pace it out in your current room. This gives you a feel for the actual size. Remember that furniture takes up space, too.
• Think about ceiling height. Most homes have 8 or 9-foot ceilings. Higher ceilings make rooms feel bigger and more open. Lower ceilings can feel cozy or cramped, depending on the room size.
• Follow the flow. Trace your finger from room to room. How do you get from the kitchen to the dining room? Is the path clear, or do you walk around furniture? Good floor plans create easy movement between spaces.
• Picture yourself using the space. Stand at the kitchen sink (on the plan) and look around. What do you see? Can you watch TV while cooking? Do you face a wall or a window? This helps you understand how the space functions in your daily life.
• Notice door swings. Those curved lines show which way doors open. A door that swings into a small bathroom takes up precious floor space. Doors that hit each other when both are open create problems.
• Think about natural light. Windows on the plan show where sunlight comes in. East-facing windows get morning sun. West-facing ones get afternoon light. This affects room brightness and temperature.
• Consider storage needs. Look at closet sizes and pantry space. A small kitchen might need a separate pantry. Bedrooms require sufficient closet space for storing clothes and personal belongings.
• Imagine furniture placement. Can you fit a king bed in that primary bedroom? Where would a couch go in the living room? Does the dining table block the kitchen entrance?
• Use online tools. Many websites, such as Planner 5D, allow you to input room dimensions and place virtual furniture. This helps you see if your current furniture fits the new space.
• Take virtual tours. If available, utilize 3D tours or virtual reality to explore the space. This bridges the gap between flat drawings and real rooms.
• The key is practice. The more floor plans you study, the easier it becomes to see them as real spaces.

Conclusion

Learning floor plan symbols takes practice, but it's worth the effort. These symbols help you communicate clearly about your home projects. They prevent costly mistakes and help you make better decisions.

Keep this guide handy when reviewing plans with contractors or real estate agents. The more you use these symbols, the easier they become to read.

Remember, every home starts as lines and symbols on paper. Understanding these basics helps you turn those drawings into the space you want to live in.

FAQ

Do symbols change by country?

Yes, some styles and symbols may differ, especially between North America and Europe. Basic ones, such as doors and windows, are fairly similar in most countries; however, it's best to clarify.

What software can I use to create floor plans with these symbols?

Popular programs include AutoCAD, SketchUp, and RoomSketcher. Many use standard symbol libraries.

Are symbols standardized in building codes?

Building codes focus more on safety and construction standards than symbols. However, most professionals use similar symbols to avoid confusion.

What should I do if I don’t understand something on my architect’s plan?

Always ask your architect or contractor for clarification. It's better to ask questions than make wrong assumptions.
